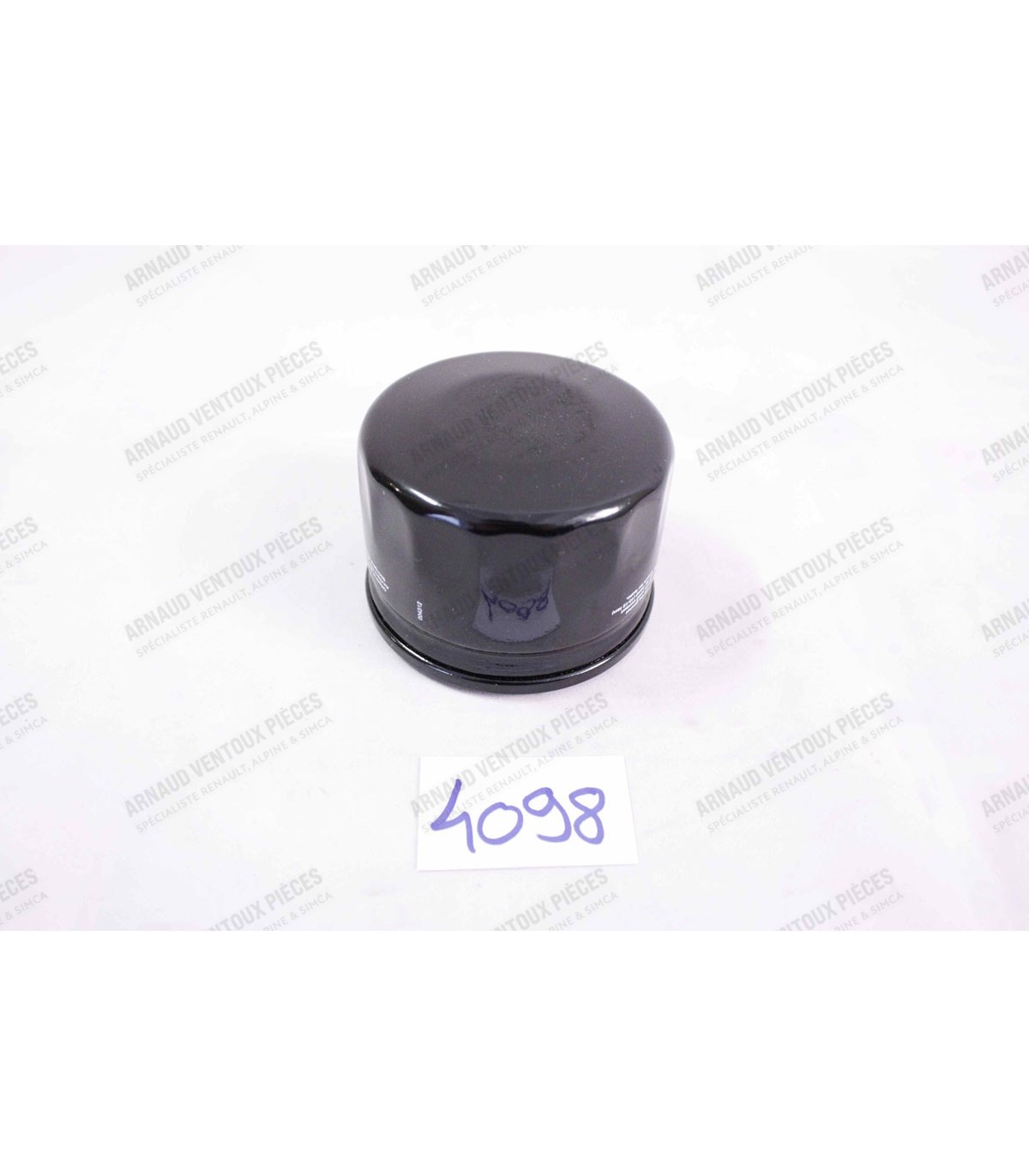

oil filter

Simca 1000

Alpine A310/6 / Renault R30 (PRV engine)

Renault R5 Alpine (1223)

782 cc / 839 cc / 706 cc engine from 1972 to 1982

Engine 845 cc / 800 - 7 - B1B from 07/1967 to 06/1986

Height: 265mm

The sets are supplied with the following components:

• Liners (x4)
• Pistons (x4)
• Rings (x12)
• Panels (x4)

Dimensions of the various parts:

• • Liner bore diameter: Ø 55.8mm
  • Liner flange or top diameter (D): Ø 69.80mm
  • Liner base diameter (A): Ø 62.50mm
  • Overall height including skirts of cylinder liners (C):124mm
  • Height from top of cylinder liner to base gasket surface (E): 112.80mm
  • Shaft dimensions: Ø 16x46mm (Cirlip-free mounting)
  • Ring thickness:1.75mm / 2mm / 3.5mm (Fireproof/Sealing/Scraper)
  • Base gasket type: Copper gasket

Piston mounting direction: an arrow drawn perpendicular to the piston axis The figure is located on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​specified by the manufacturer or given in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

• Primary winding resistance: 2.8 ohms
• Secondary winding resistance: 7900 ohms
• Coil compatible with electronic ignition kits Ref AVP4798 and Ref AVP4799
