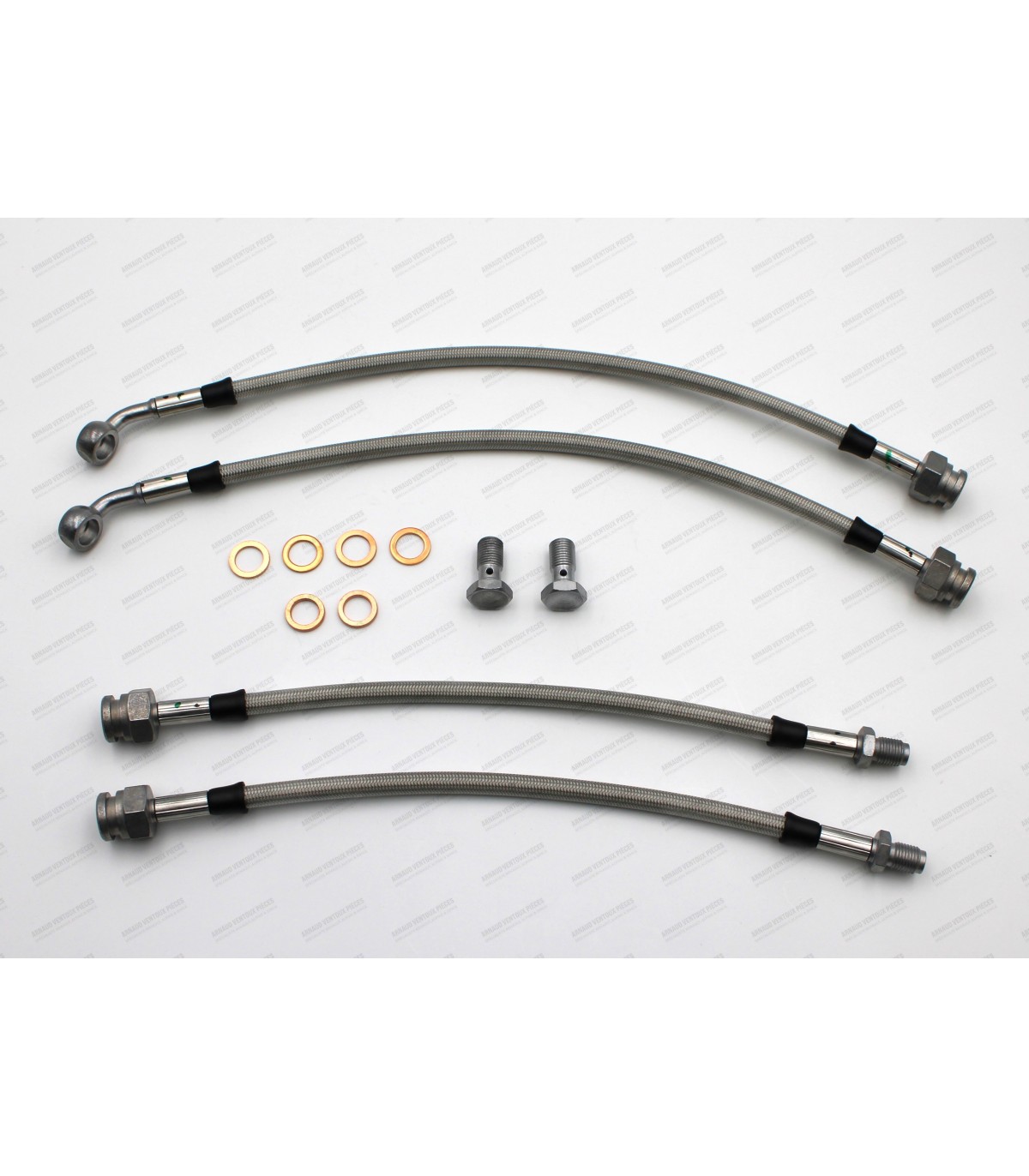

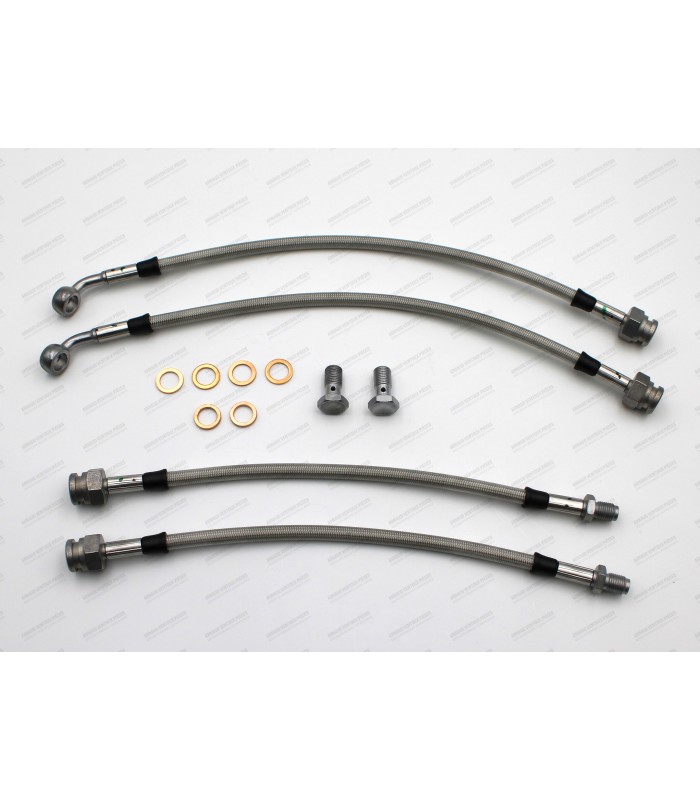

kit of 4 "Goodridge" aviation brake hoses (stainless steel braided) - Mounting large front brake and small rear brake

Suitable for:

• R8 / A110: Front Brake (Big Brake Assembly)
• R5 Alpine Atmo (1223) and Alpine Turbo (122B): Front Brake
• R12 (All models) / R15TL: Front Brake
• R16(L / TL / TS ) / R16TX (2nd assembly): Front Brake
• A310.4 (n°910 at the end of the series): Front Brake
• A310 V6 (Before 1980): Front Brake

Suitable for dice in Ø 18.4mm, Ø 19.4mm, Ø 20.4mm

Grid Dimensions:

• Length:45cm
• Height:15.5cm
• Curve:3.5cm

The entire kit is made up of 3/8" -24UNF fittings

This kit is made up of the following copper pipes:

- from the brake master cylinder to the Front Right wheel

- from the brake master cylinder to the Front Left wheel

- from the brake master cylinder to the distributor or rear three-way connection

- from the three-way connection or rear distributor to the right rear wheel

- from the three-way connection or rear distributor to the left rear wheel

• Shim sold individually, 2 shims required to equip a front axle.
• In addition to the aluminum shim for attaching the front caliper, a caliper yoke is required (not available in the AVP catalog)
• WARNING: This assembly is specific. We remind you that some brake caliper yokes may not be compatible with the so-called "Big Brake" assembly.
